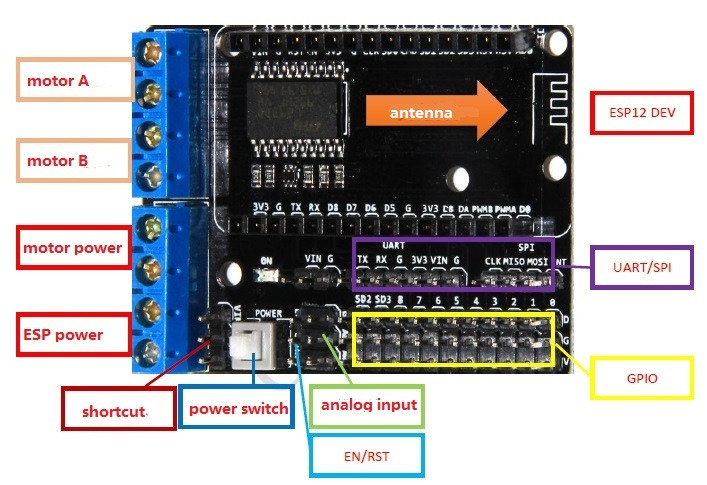

NodeMCU 모터 쉴드 -L293D

NodeMCU Lua ESP8266 WiFi 개발보드용 모터 쉴드 이다.

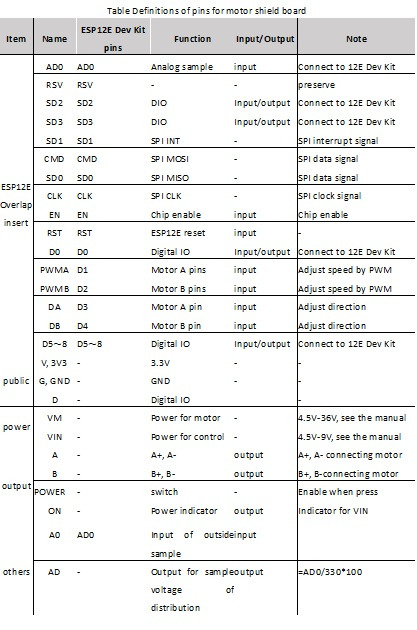

※ 아래는 모터관련 핀이다.

Motor Shield	NodeMCU DevKit	GPIO	Purpose
D1 PWMA (Motor A)	D1	5	Speed
D3 DIRA (Motor A)	D3	0	Direction
D2 PWMA (Motor B)	D2	4	Speed
D4 DIRB (Motor B)	D4	2	Direction



※ 아래 스펙을 참고하자.

• Power input:
  • Motor power supply (VM): 4.5V ~ 36V, can be powered separately
  • Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately
  • Module provide the shorcut connector (short by VM and VIM), thus can use one power source (must be 4.5V~9V) to complete the drive and control for motor at a time.
• Logic Operating current Iss: ≤60mA (Vi = L), ≤22mA (Vi = H)
• Drive part of the work current Io: ≤1.2A
• Maximum power dissipation: 4W (T = 90 ℃)
• Control signal input level: High: 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V
• Working temperature: -25 ℃ ~ + 125 ℃
• Drive Type: Dual high-power H-bridge driver
• ESP12E Control Port: D1, D3 (A motor); D2, D4 (B motor)
• Expand two-way motor-driven, two-way direct drive motor
• Onboard power switch
